What Are the Crucial Initial Setup Steps for a Multi-Zone Automatic Irrigation System Installation?

Installing a multi-zone automatic irrigation system is the ultimate way to maintain a lush, healthy landscape without wasting water or time. This is not a simple sprinkler hookup; it is a meticulously engineered system designed to deliver precise amounts of water to specific areas of your yard. The success of the entire system—its longevity, water efficiency, and ability to keep your Foundation Plantings healthy—relies entirely on the proper execution of the initial setup steps.

The entire installation process is built around three core initial setup factors to maximize water efficiency and prevent over- or under-watering of the different landscaped areas.

The first and most crucial step is performing a thorough analysis of the water supply, as the entire system’s design capacity depends on it.

• Pressure Testing the Water Source: Before any pipes are laid, professionals pressure test the water source to determine the available flow rate (GPM) and pressure (PSI). This dictates how many sprinkler heads can run simultaneously on a single line.

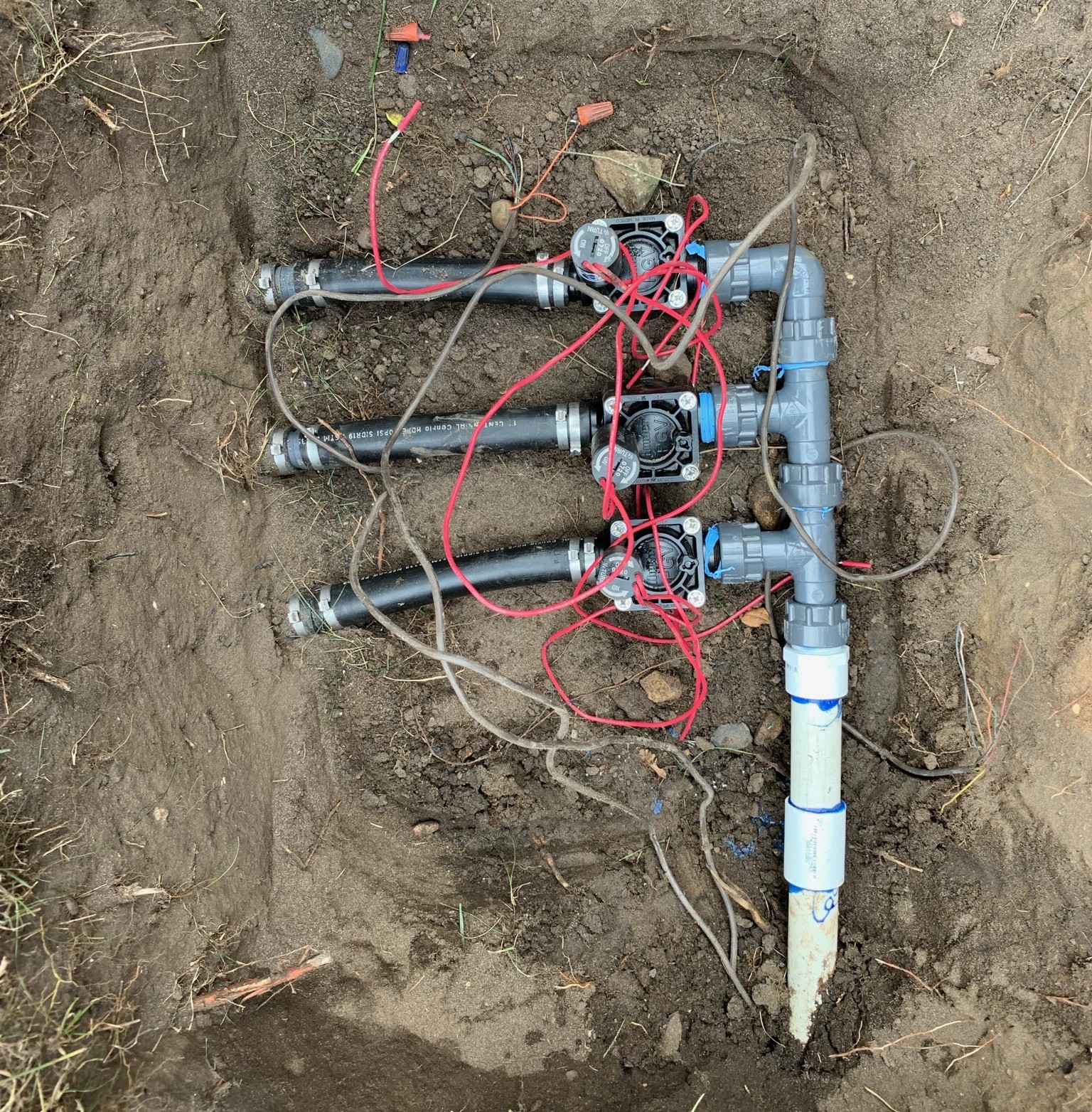

• Establishing Correct Zone Divisions: This test information is used to establish the correct zone divisions. For example, a delicate flower bed needs a different zone (and different water pressure) than a robust lawn area or a drip line for new foundation plantings. Correct zoning is a primary installation factor that ensures every plant receives the right amount of water.

Safety and proper infrastructure are non-negotiable for a long-lasting installation. The primary water line must be trenched and secured with essential safety devices.

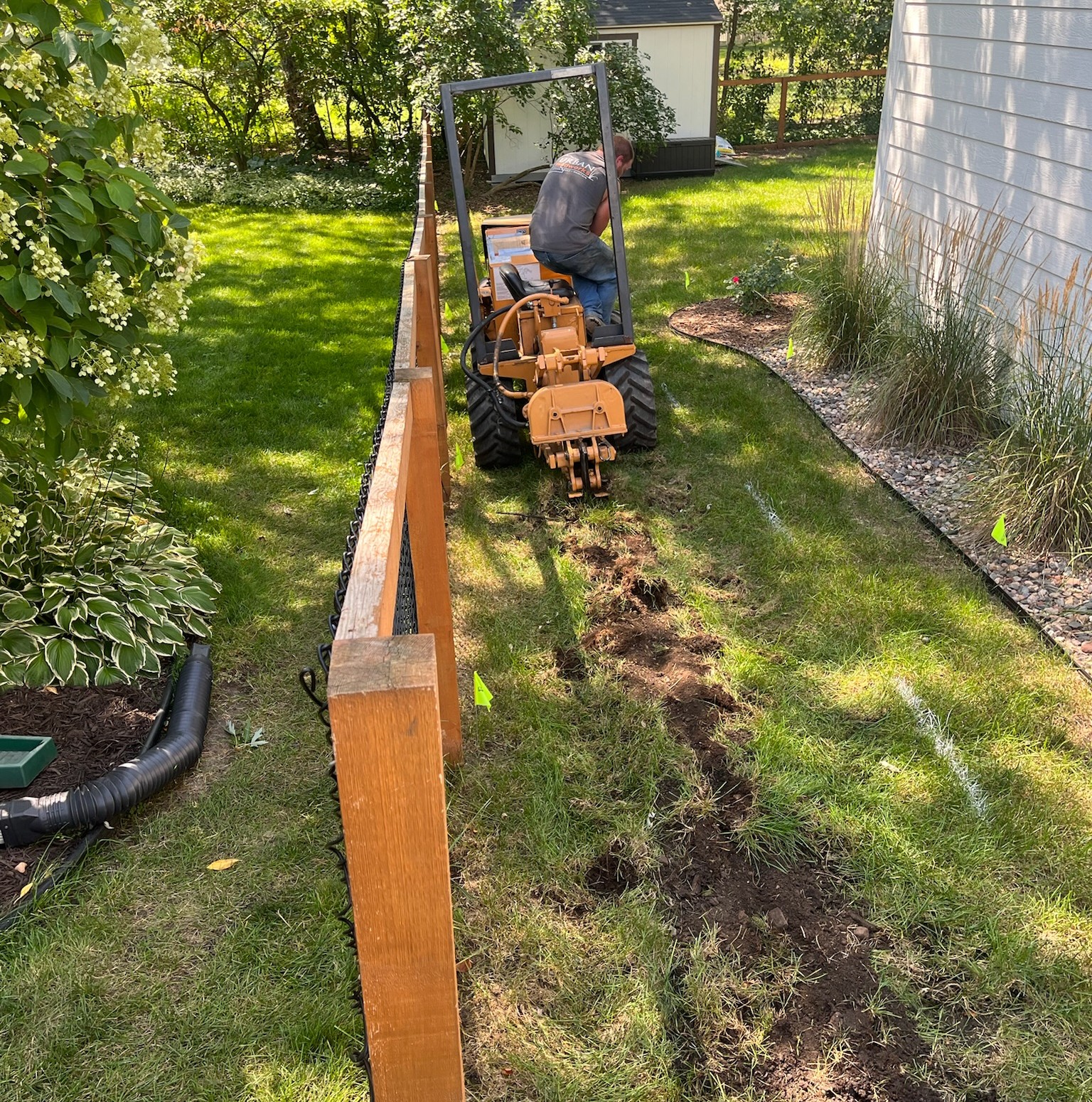

• Trenching the Primary Water Line: The main water line must be trenched to the depth required by local code (typically 8-12 inches) to protect it from damage and freezing. This careful installation process protects the system and is a key installation factor for its longevity.
• Installing a Backflow Prevention Device: The primary water line must be connected to a backflow prevention device. This is a mandatory safety device required by law to prevent water that has been in your irrigation lines (which may contain lawn chemicals or soil) from reversing flow and contaminating the public drinking water supply.

The effectiveness of your irrigation services is determined by how evenly the water is distributed. This requires engineering precision during the placement of every single sprinkler head.

1. Head-to-Head Coverage: All irrigation services heads must be correctly spaced and aligned for head-to-head coverage. This means that water from one sprinkler head must reach the next one, ensuring a double-layer of coverage across the entire zone.

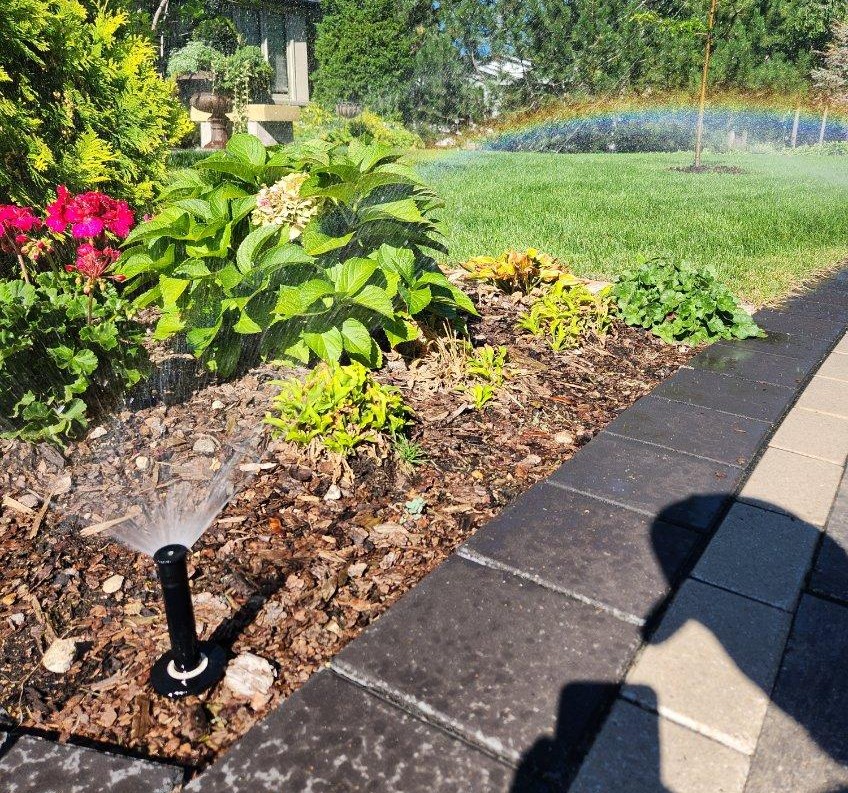

2. Minimizing Overspray: Care is taken to select and position the appropriate sprinkler head (e.g., rotary, spray, or specialized drip line) to avoid overspray onto hardscapes like Paver Patios & Walkways or driveways.
3. Controller Setup: The final installation process factor involves setting up the controller, including wiring and connecting it to a dedicated rain/weather sensor. This allows the system to automatically pause watering when it rains, further maximizing water conservation.

This careful calibration of the zones, flow, and coverage is a primary installation factor for the entire Irrigation Services system, ensuring a uniform, healthy landscape and a long-lasting installation that provides years of efficient use.

Ready to invest in a water-efficient, professionally installed Multi-Zone Automatic Irrigation System? Contact Villa Landscapes today to schedule your initial consultation.
